INTSUPERMAI Industrial Pulse Dust Collector 2.2KW 220V Pulse Jet Cleaning with PTFE Filter 99.8% Efficiency 2200m³/h Vacuum Cleaner for CNC Metal Cutting Grinding Dust Extractor Collector in Workshop
Product details
| Management number | 218595620 | Release Date | 2026/05/03 | List Price | US$851.60 | Model Number | 218595620 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

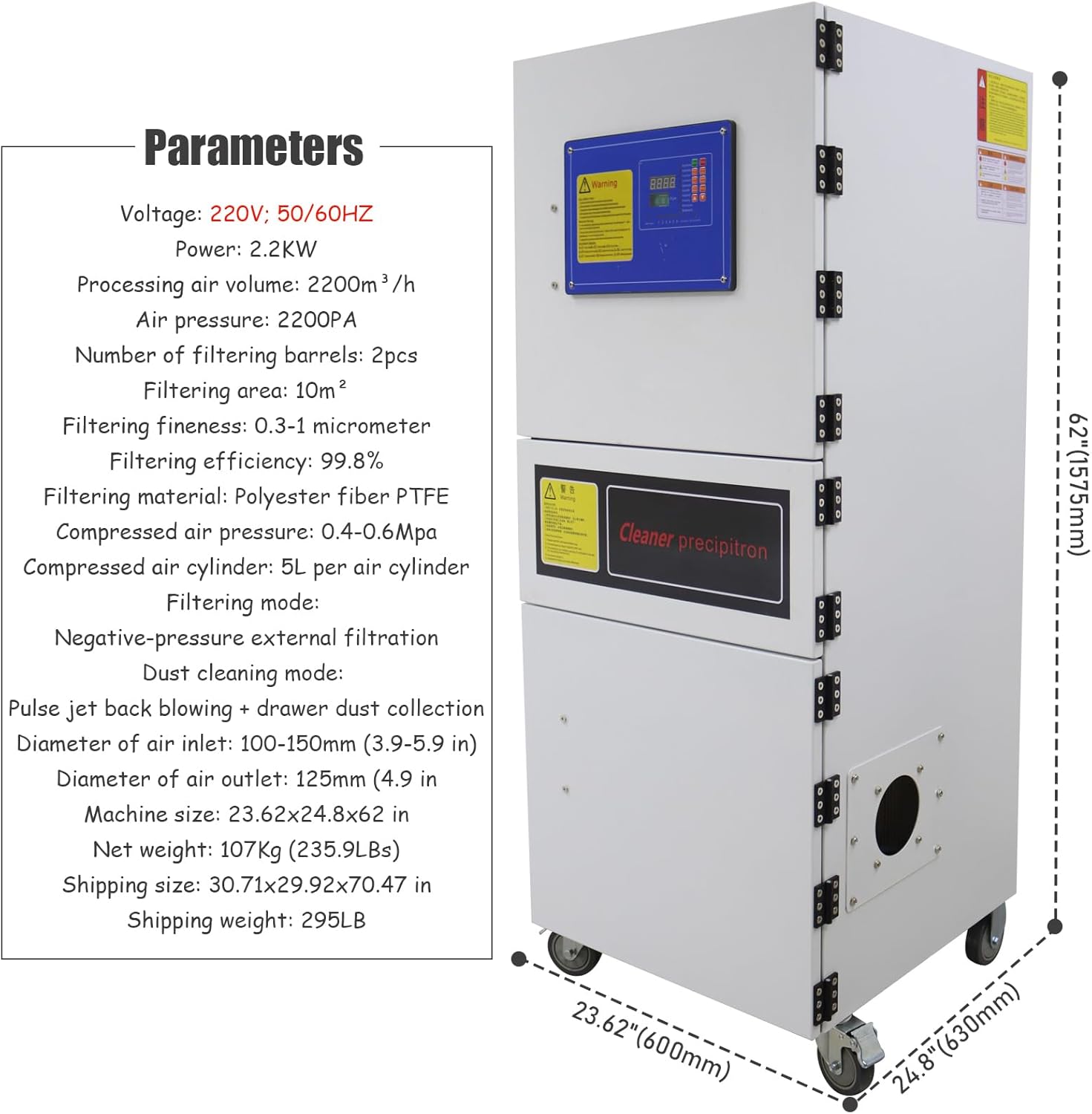

Parameters: Voltage: 220V 50/60HZ Power: 2.2KW Processing air volume: 2200m²/h Air pressure: 2200PA Number of filtering barrels: 2pcs Filtering area: 10m² Filtering fineness: 0.3-1 micrometer Filtering efficiency: 99.8% Filtering material: Polyester fiber PTFE Compressed air pressure: 0.4-0.6Mpa Compressed air cylinder: 5L per air cylinder Filtering mode: Negative-pressure external filtration Dust cleaning mode: Pulse jet back blowing + drawer dust collection Diameter of air inlet: 100-150mm (3.9-5.9 inches) Diameter of air outlet: 125mm (4.9 inches) Machine size: 600x630x1575mm (23.6x24.8x62 inches) Net weight: 107Kg (235.9LBs) Shipping size: 30.71x29.92x70.47 inches Shipping weight: 295LBs Item Included: One set of 220V 2.2KW Industrial Pulse Dust Collector, Pulse Jet Cleaning with PTFE Filter 99.8% Efficiency
- High-Efficiency Industrial Dust Filtration: 220V pulse dust collector, features a powerful 2.2KW motor and dual PTFE filter cartridges with a 10m² area, achieving 99.8% filtration efficiency for particles as fine as 0.3-1 microns. The pulse jet dust collector system ensures a powerful 2200m³/h airflow (2200PA air pressure)
- Intelligent & User-Friendly Operation: The industrial dust extractor is equipped with a digital control panel for real-time monitoring and an automatic pulse jet back blowing system for hands-off filter cleaning. The drawer-style dust storage bin simplifies disposal, making maintenance quick and clean
- Robust Structural Design: Our commercial dust vacuum built with a heavy-duty aluminum alloy blower and a sturdy steel body (net weight 107Kg/235lb). Heavy duty structural design, safe and reliable. The integrated 5L air cylinder and safety-focused electric box ensure reliable, continuous operation in industrial environments
- Enhanced Mobility and Safety Features: Comes with four locking universal wheels to improve the movement convenience and applicability in your workshop or garage. The air pressure gauge and protective electrical system provide operational safety and prevent damage
- Versatile Application Across Multiple Tools: fume collector is perfect for capturing fine dust and smoke from CNC machines, metal cutting, grinding, and other machining processes. The 100-150mm adjustable inlet and 125mm air outlet offers flexible hose connections
| Color | White |
|---|---|
| Voltage | 220 Volts (AC) |
| Wattage | 2200 watts |
| Material | Metal |
| Flow Rate | 21.58 Cubic Feet Per Second |
| Item Weight | 300 pounds |
| Part Number | SY134175 |
| Manufacturer | INTSUPERMAI |
| Power Source | ac |
| Number Of Pieces | 1 |
| Item model number | SY134175 |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 70.47 x 30.71 x 29.92 inches |
| Item Package Quantity | 1 |
